4W Solar Panel 3 In1 DC Output 12V Solar Cells Charger Built-in 18650 Battery For Outdoor security Camera IP66 Waterproof

NOTE

All options do not include batteries.

Main Features:

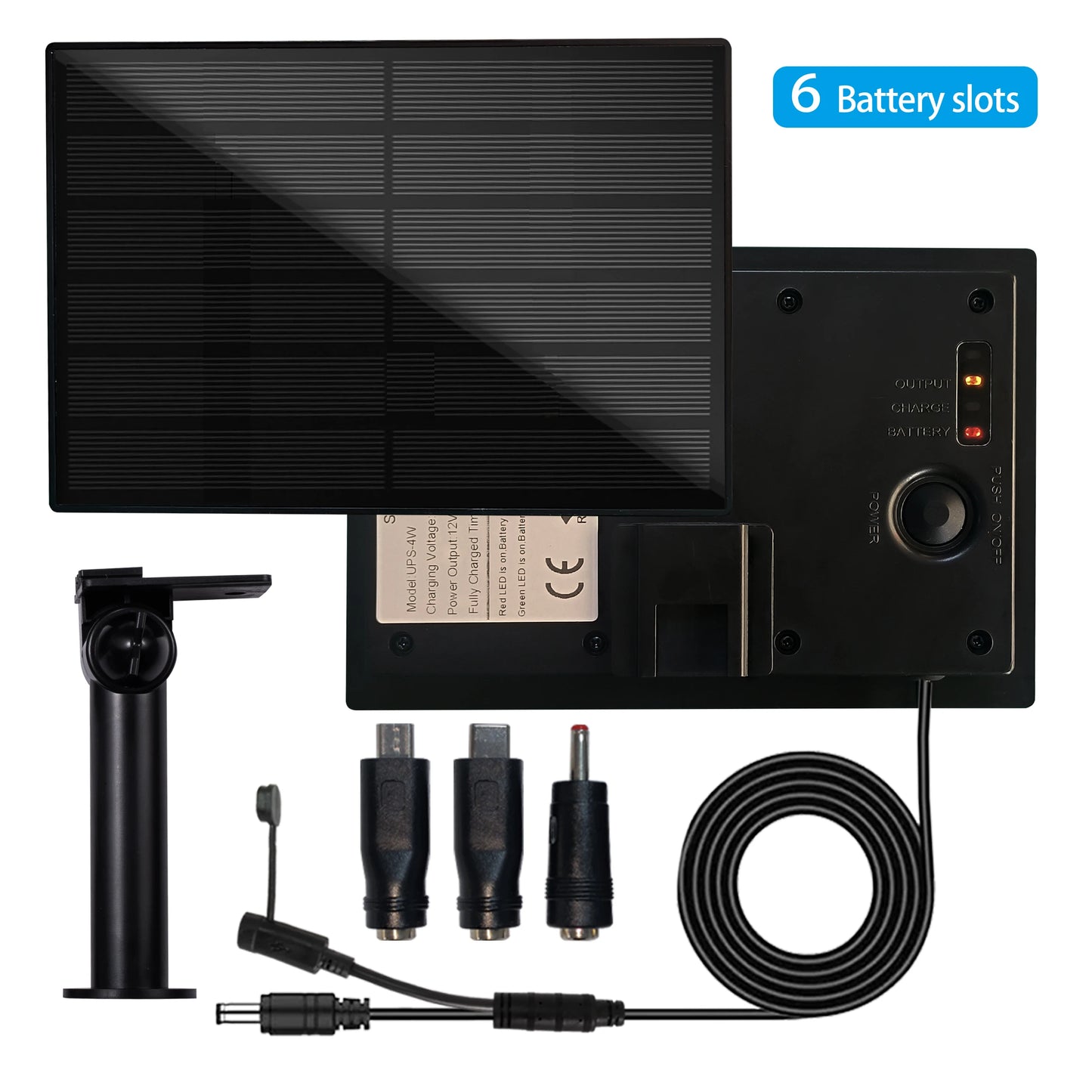

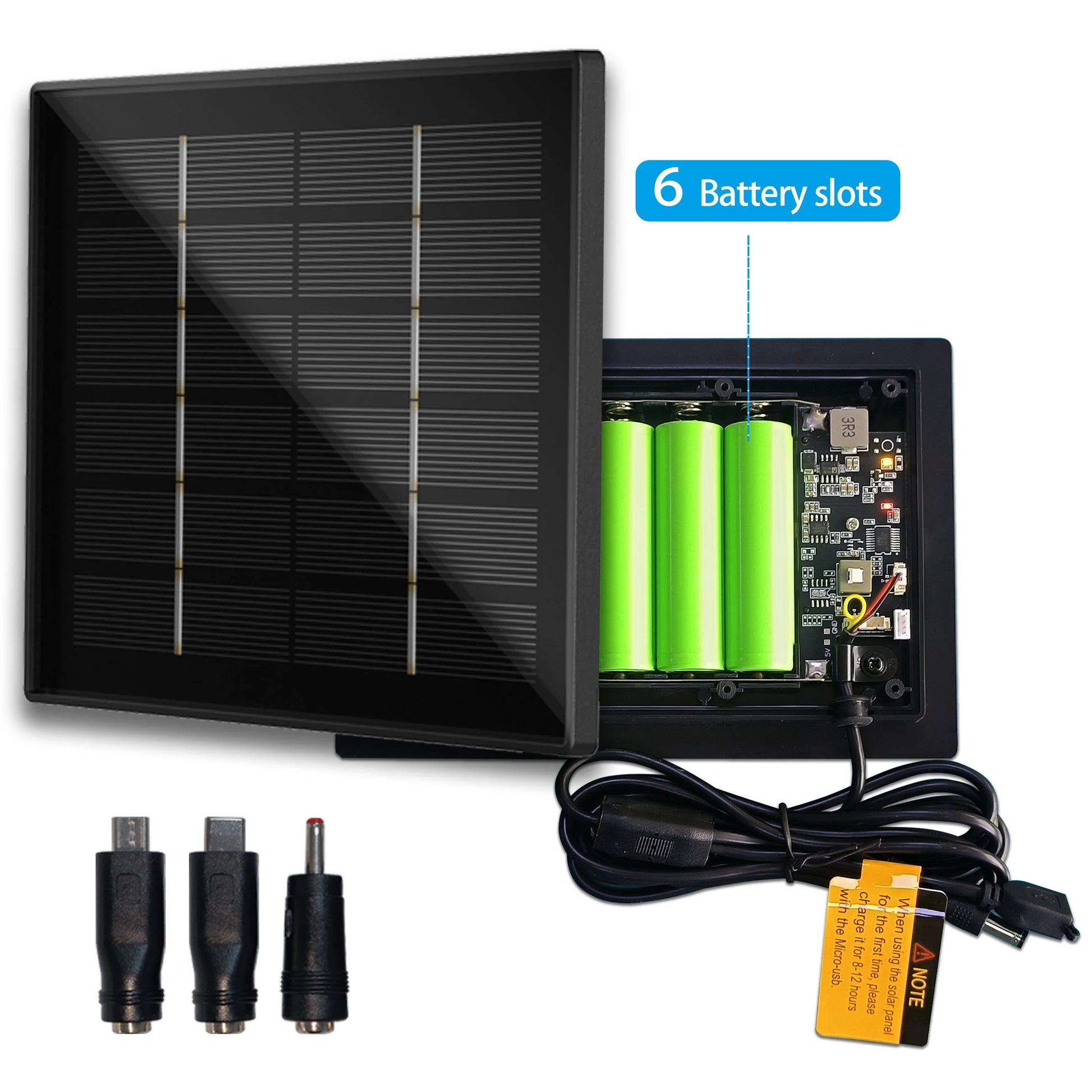

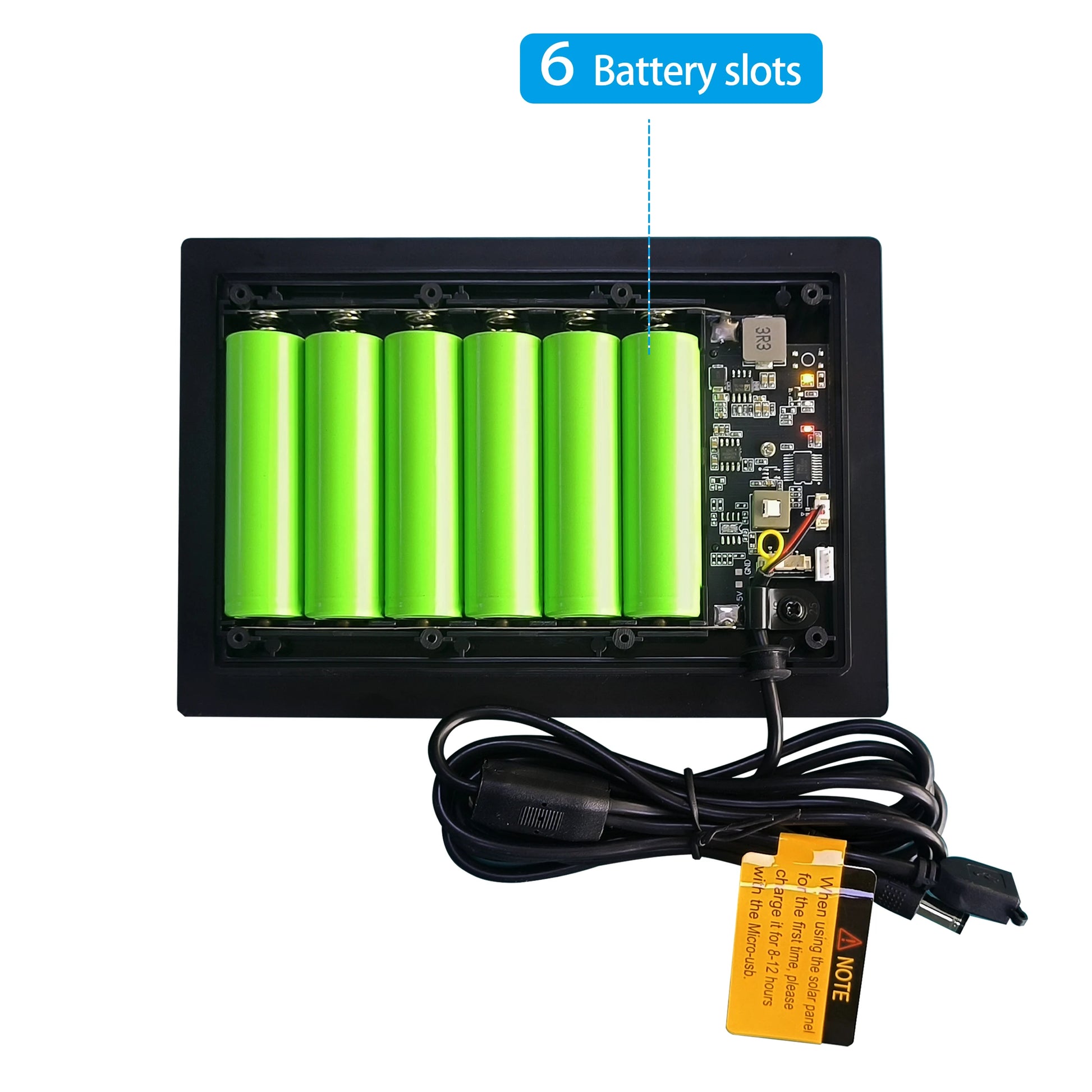

【Replaceable Batteries】The solar panel is equipped with 6 built-in 18650 battery slots, with slot dimensions compliant with international 18650 battery specifications, allowing for easy battery installation.
【MCU Charging Management】Utilizes a low-power MCU core processor to precisely manage charging and discharging processes, ensuring the solar panel operates normally.
【Monocrystalline Silicon Solar Cells】The solar cells are made of monocrystalline silicon material, achieving a conversion efficiency of up to 23%, thereby enhancing the efficiency of converting sunlight into electricity.
【Constant Current Voltage Regulation Circuit PCB】The built-in PCBA uses a constant current circuit to output a stable voltage from the battery, powering your devices and ensuring their normal operation.
【Charging Methods】This panel supports two charging methods: 1) solar charging, and 2) charging the battery using a 5V2A power adapter.
【Status Indicator Lights】The panel features three status indicator lights on the back, making it easy to monitor the panel's operational status and troubleshoot issues.
【Outdoor Waterproof IP66】This panel is specifically designed for outdoor use and features IP66-rated waterproof performance.
【Overcharge and Over-Discharge Protection】The overcharge voltage is 4.25V, and the over-discharge voltage is 2.8V, providing safer protection for the battery and extending its lifespan.
【Short-Circuit Protection】The panel is equipped with short-circuit protection functionality. If you accidentally reverse the polarity of the output voltage, it will not damage the internal circuitry of the panel.
【About the Cable】The cable is 2 meters long and features one 5V-6V input interface and one output interface with a 5.5x2.1mm DC plug. It includes a Micro USB plug, Type-C plug, and 3.5x1.35mm plug, along with a USB cable.
【Switch Button】The switch button connects the battery to the circuit PCB, providing high safety redundancy.

FAQ

Q: Is the battery included?
A: Panel has 6 battery slots, you can choose you need.
Q: Use environment temperature
A：-10°-50°
Q：How to choose a battery?
A：Supports all 18650 batteries.
Q：Is there a requirement for battery capacity?
A：No limitations, high capacity, long charging time.
Q：How are the panels installed?
A：Please install the panel in a location with greater than 5 hours/day of sunlight.

Output Current

Option 1: Output 5V

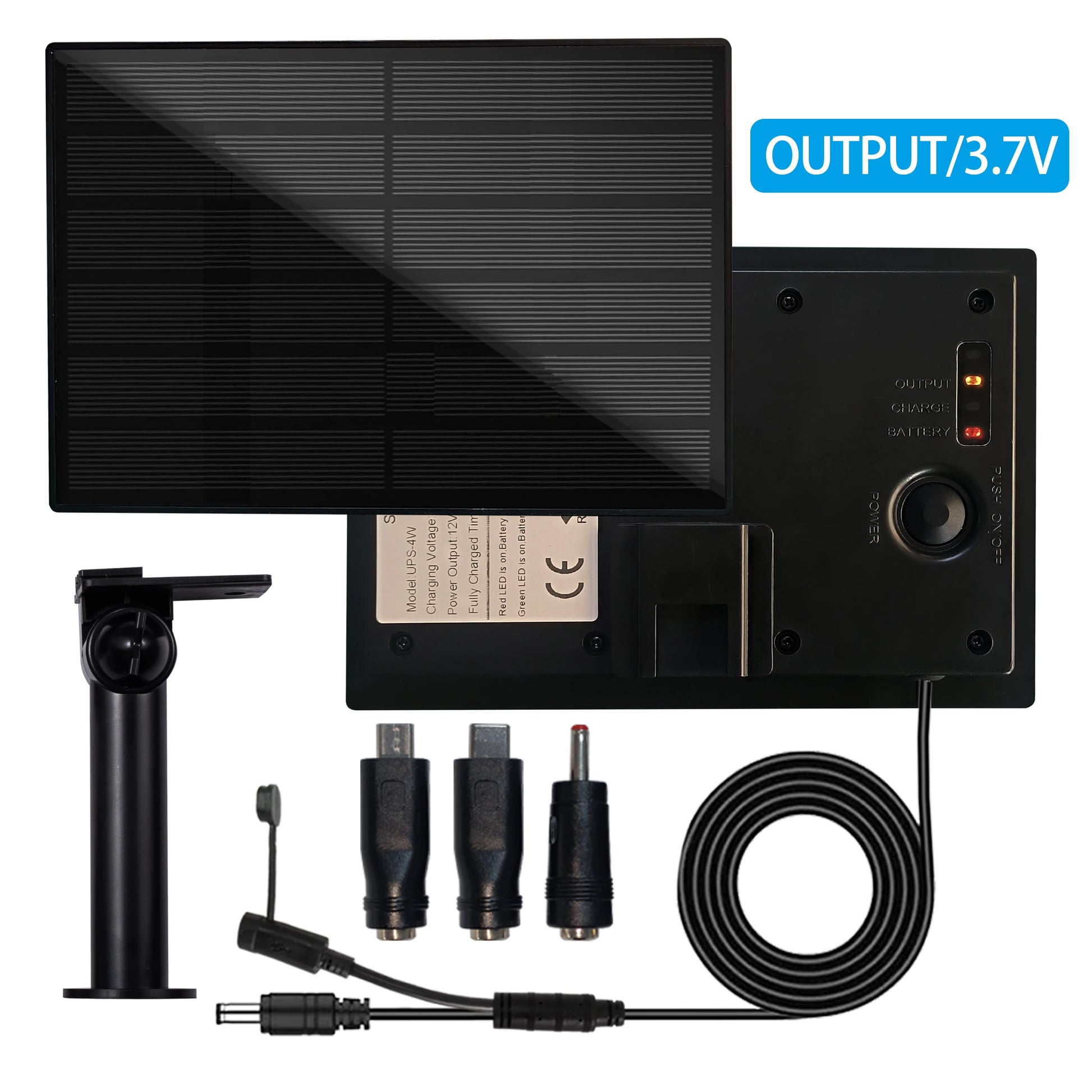

Option 2: Output 3.7V-4.2V

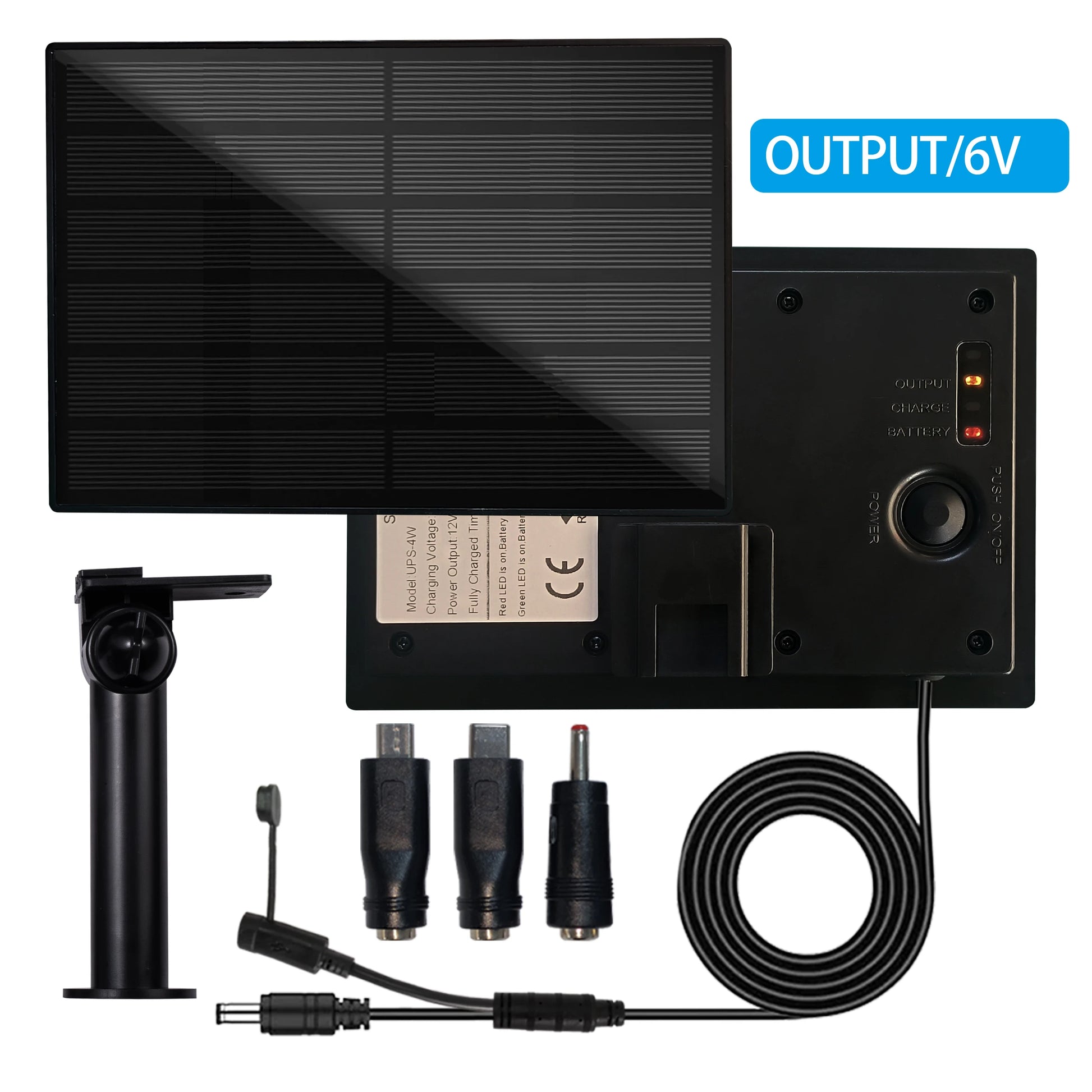

Option 3: Output 6V
Option 4: Output 9V
Option 5: Output 12V

Device Power

Since the panel generates relatively little power, if it provides power for high-power devices, the rate at which the devices consume power is much greater than the rate at which the panel is charged.
If you need to work 7X24 hours, please keep your device power and working current less than the following reference values.
Device: power 0.45W

Applicable Devices

This solar panel can power hunting cameras, low-power cameras for up to 365 days. It can also charge cell phones, outdoor small power products.

Multiple styles of input and output connectors.

Charging Indicator

It is convenient and clear to judge the working status of the solar panel according to the color of the indicator light.

Easy installation

When fixing the bracket, adjust the mounting angle as required.

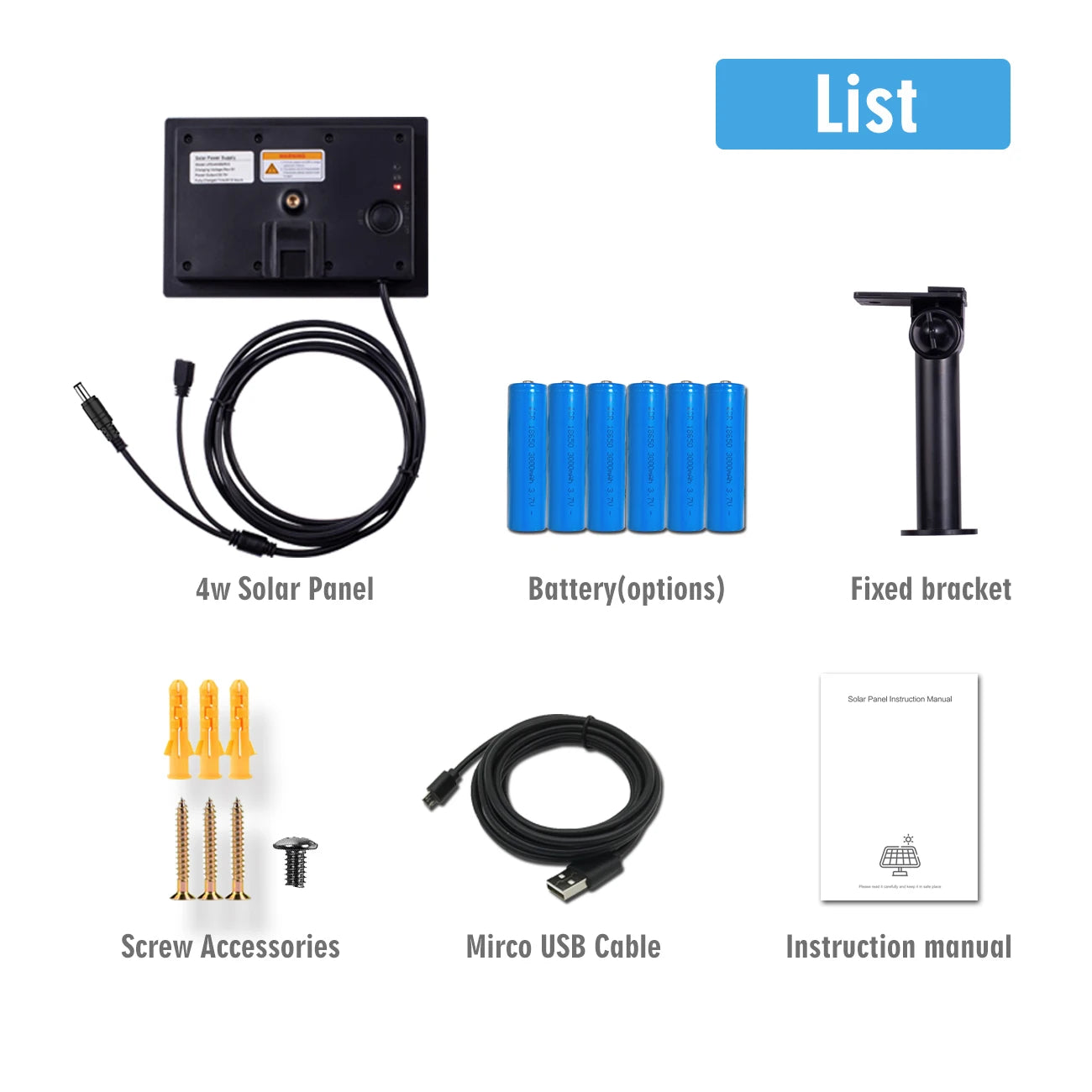

Packing List

Solar Panel 1PCS
Fixed bracket 1PCS
Screws 1PCS
Instruction manual 1PCS
Screw accessory package 1 package
Battery needs to be purchased by yourself
