Product description:

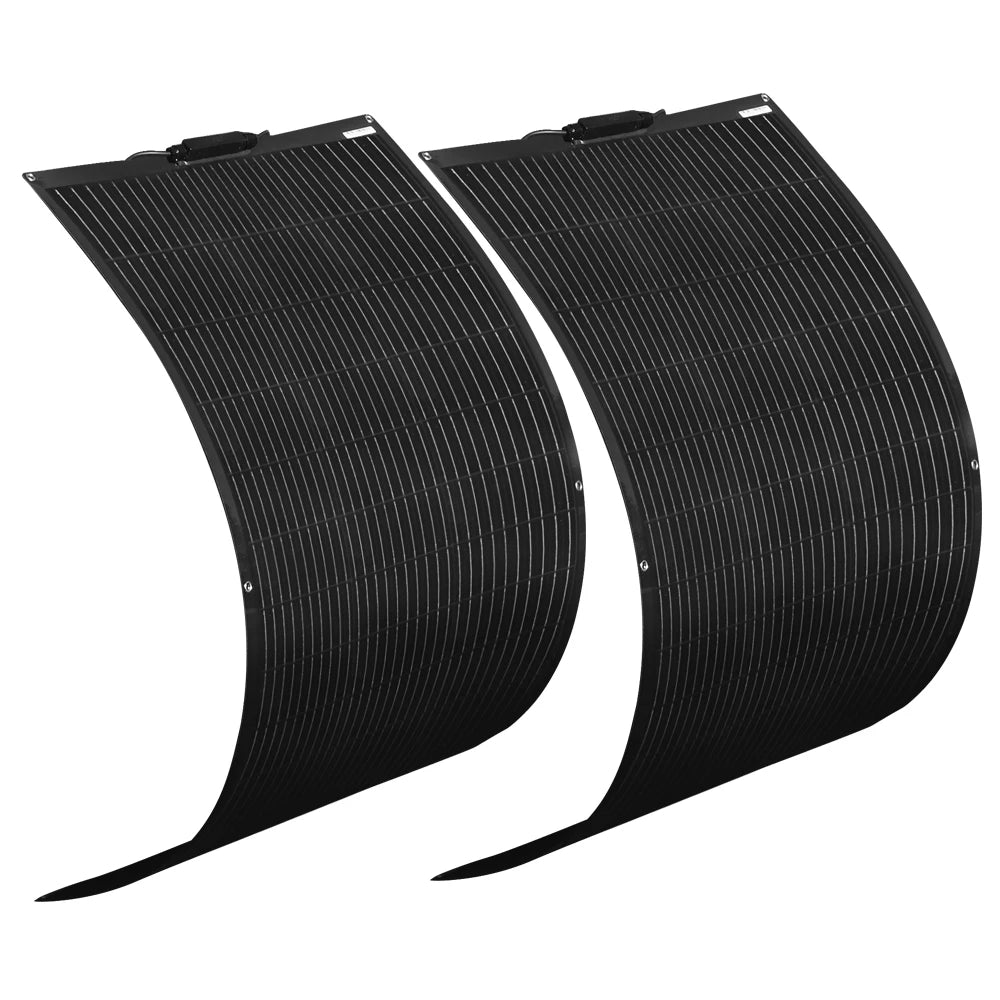

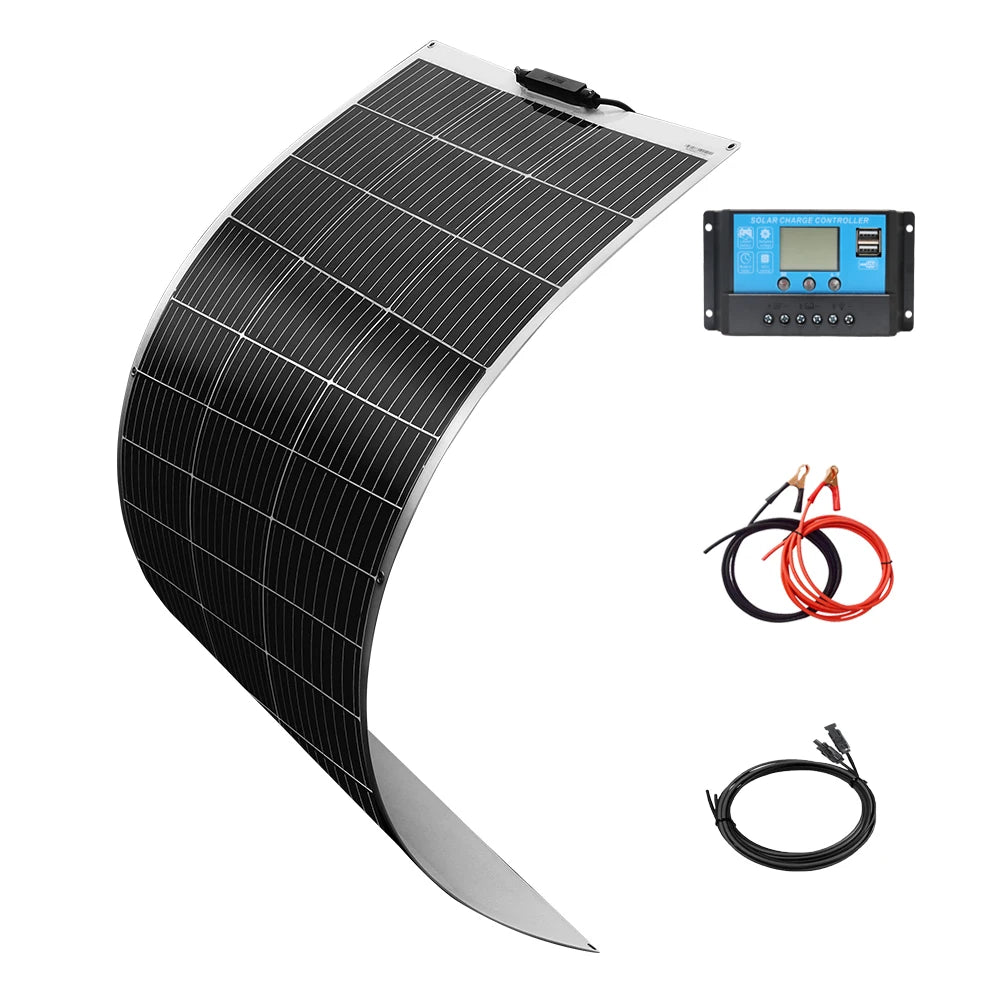

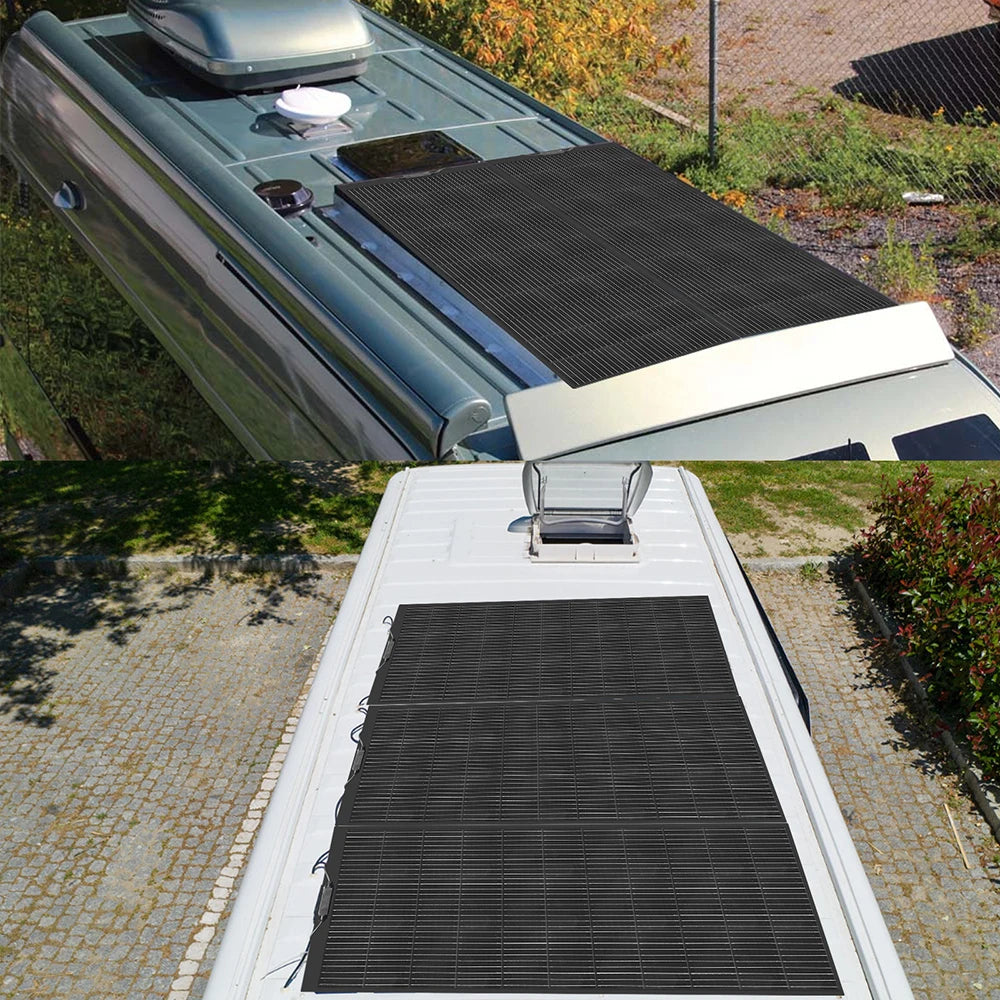

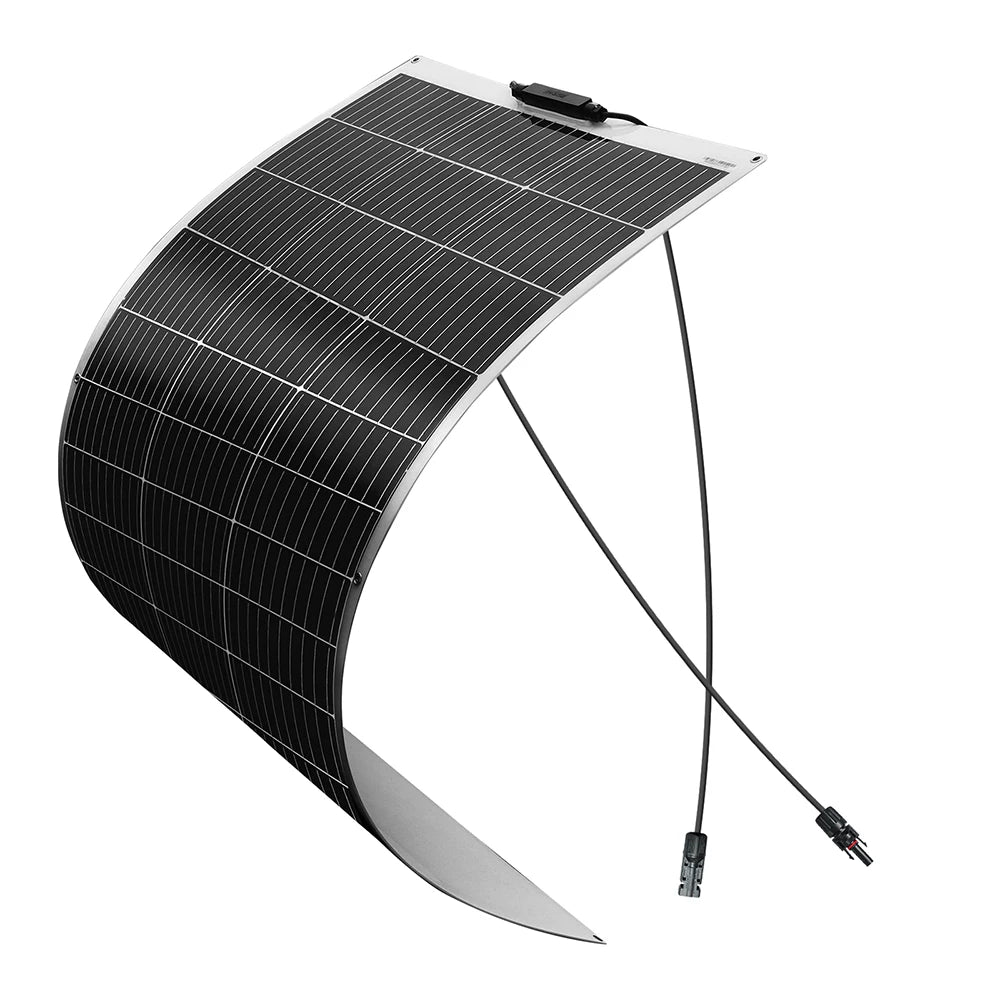

Easy to use: This product is a semi-flexible board that can be bent up to 25 degrees. It is suitable for mounted on an irregular smooth surfaces such as RV roofs, boats, tents, Yacht, vaulted roofs, etc.

High efficiency, Light weight: only 3mm thick, weight 2.06kg, easy to hang, disassemble and carry.

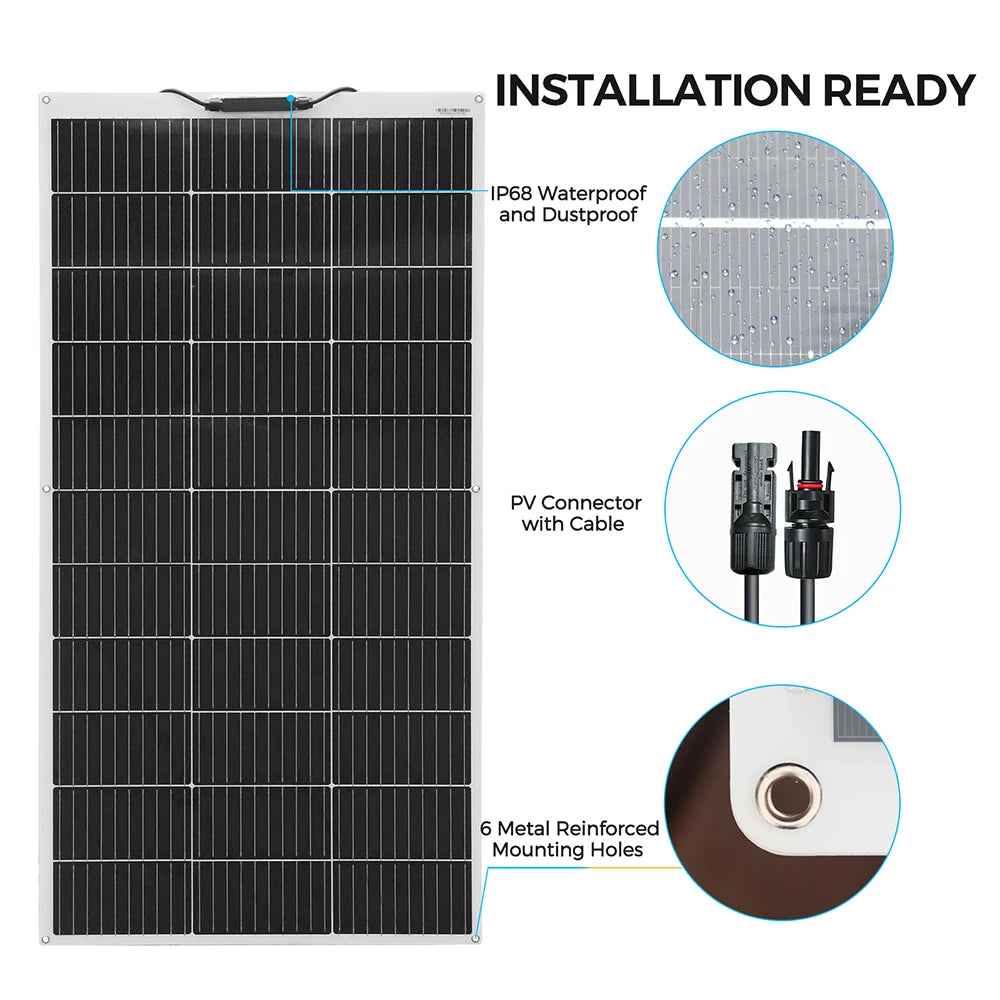

Easy to install: Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times. Please install the product on a smooth surface, do not install it on an uneven surface.

The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.

The solar panel operates at 18.15V.

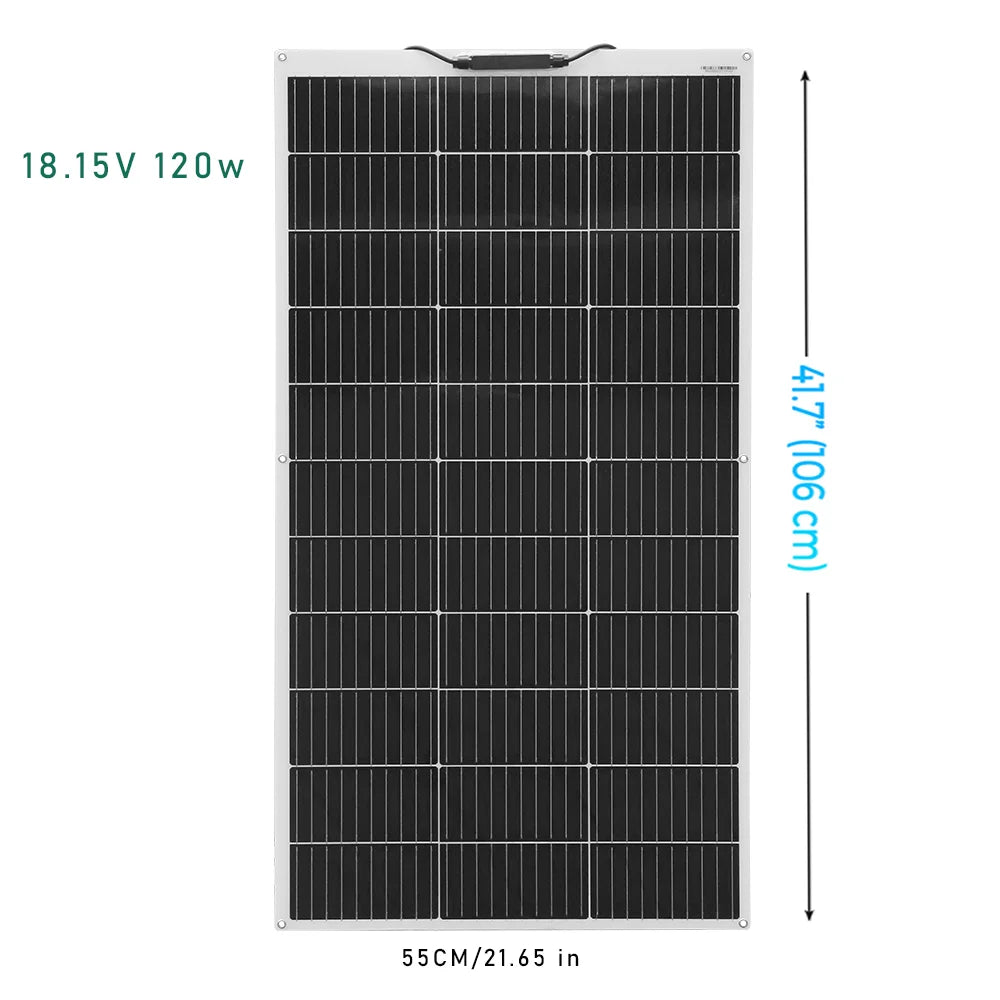

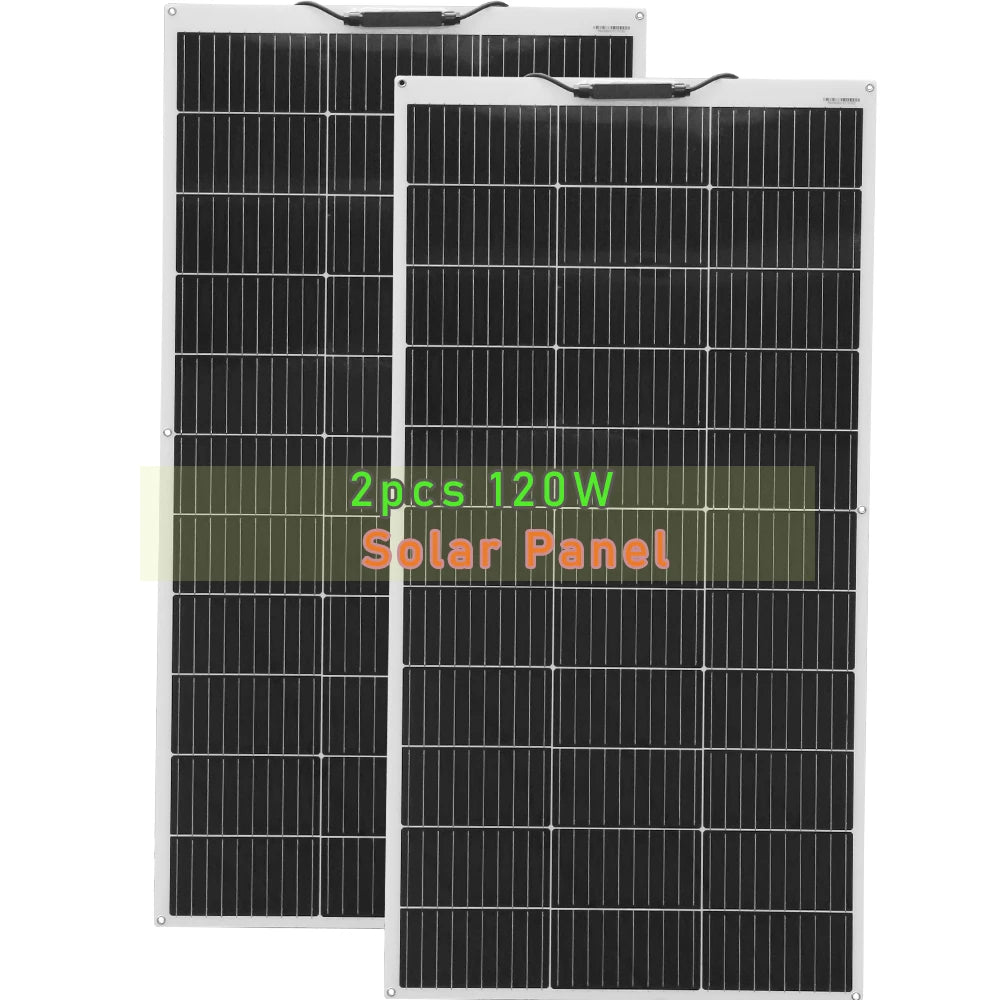

18.15V 120W Solar Panel Specifications

Maximum power(Pmax) 120W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.9 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 6.6A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 2060g

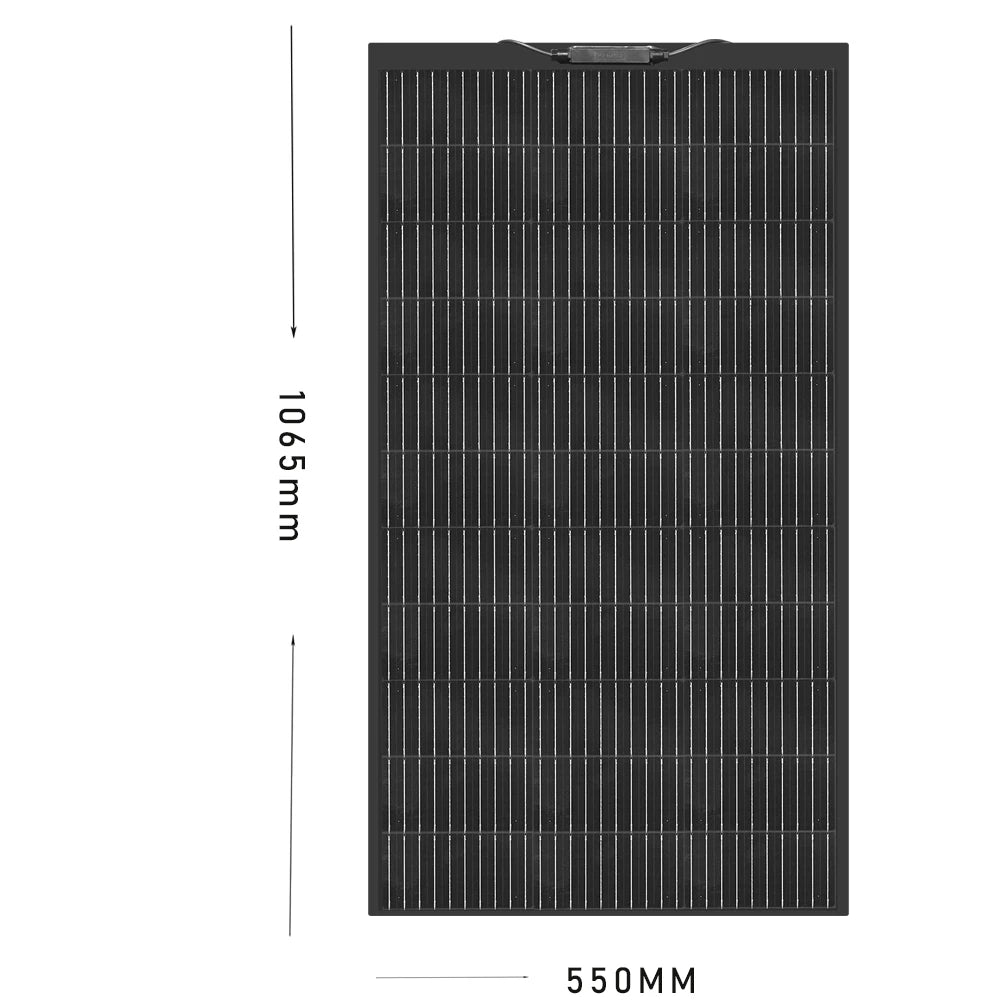

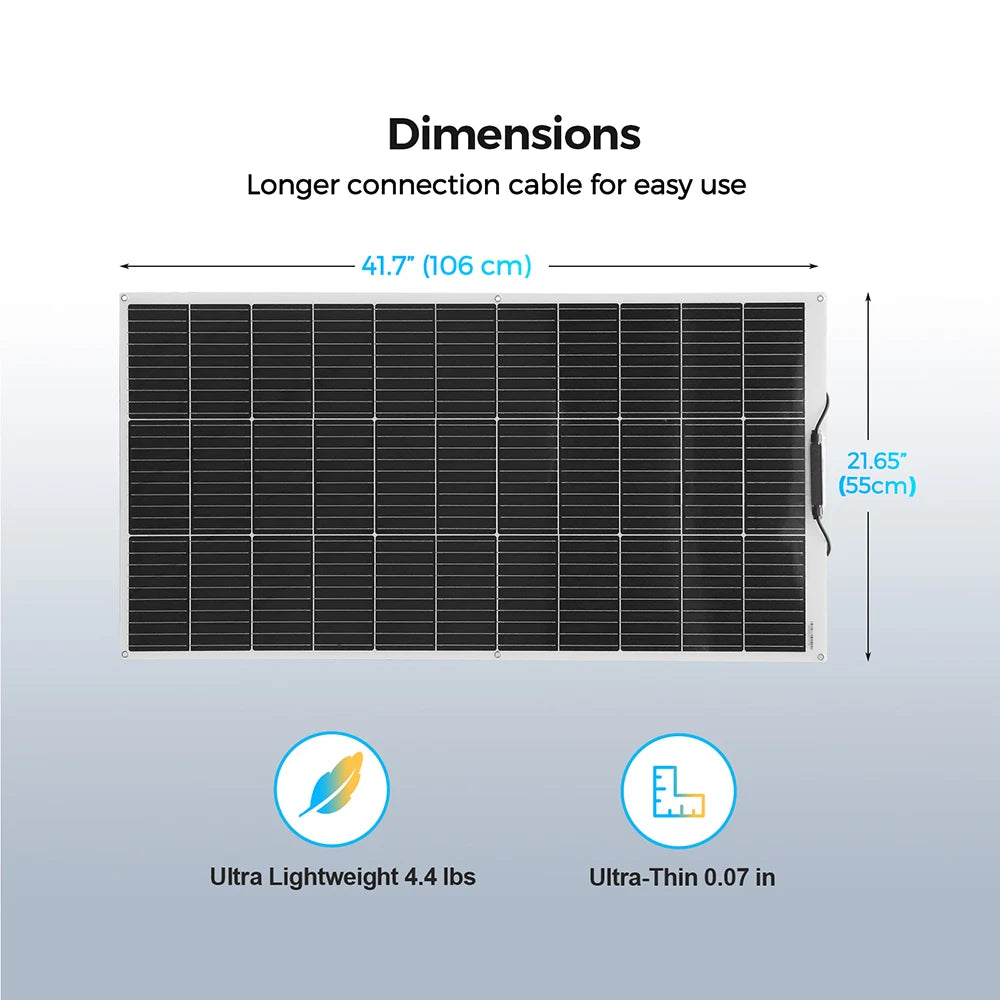

Size 1065*550*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

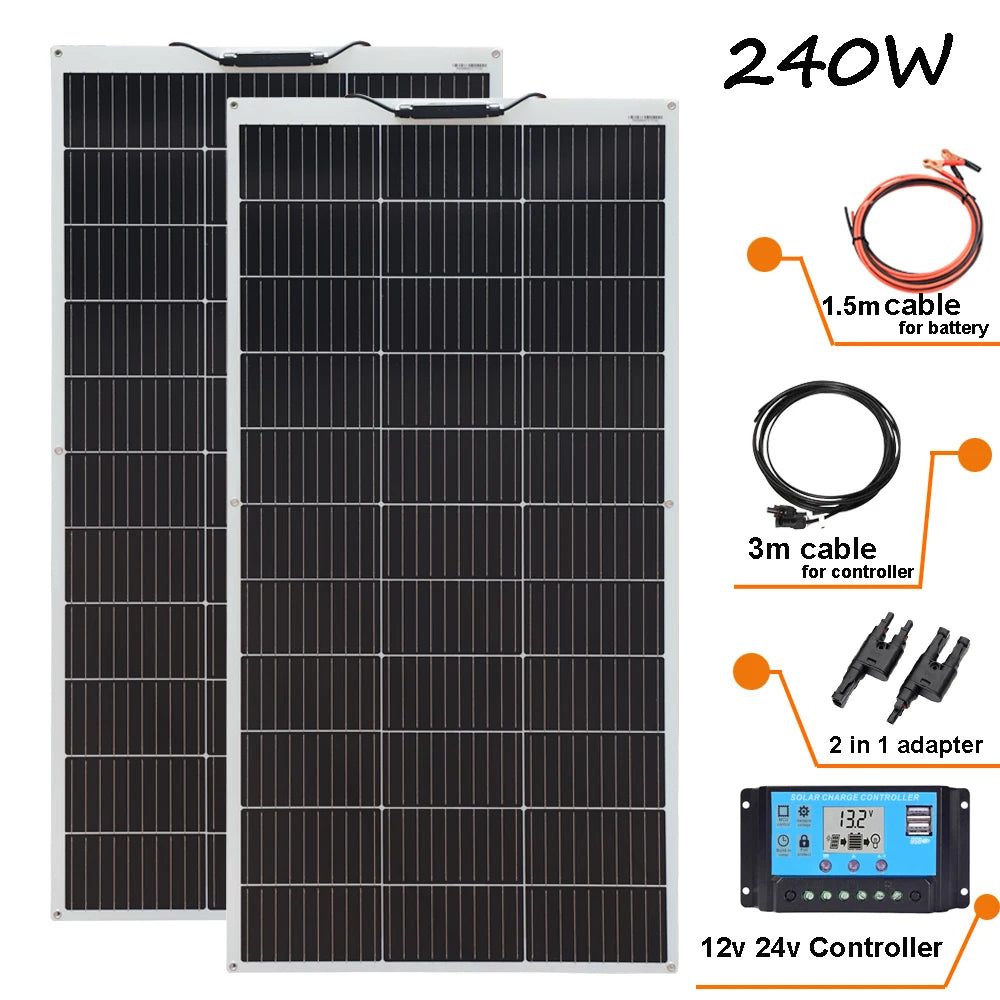

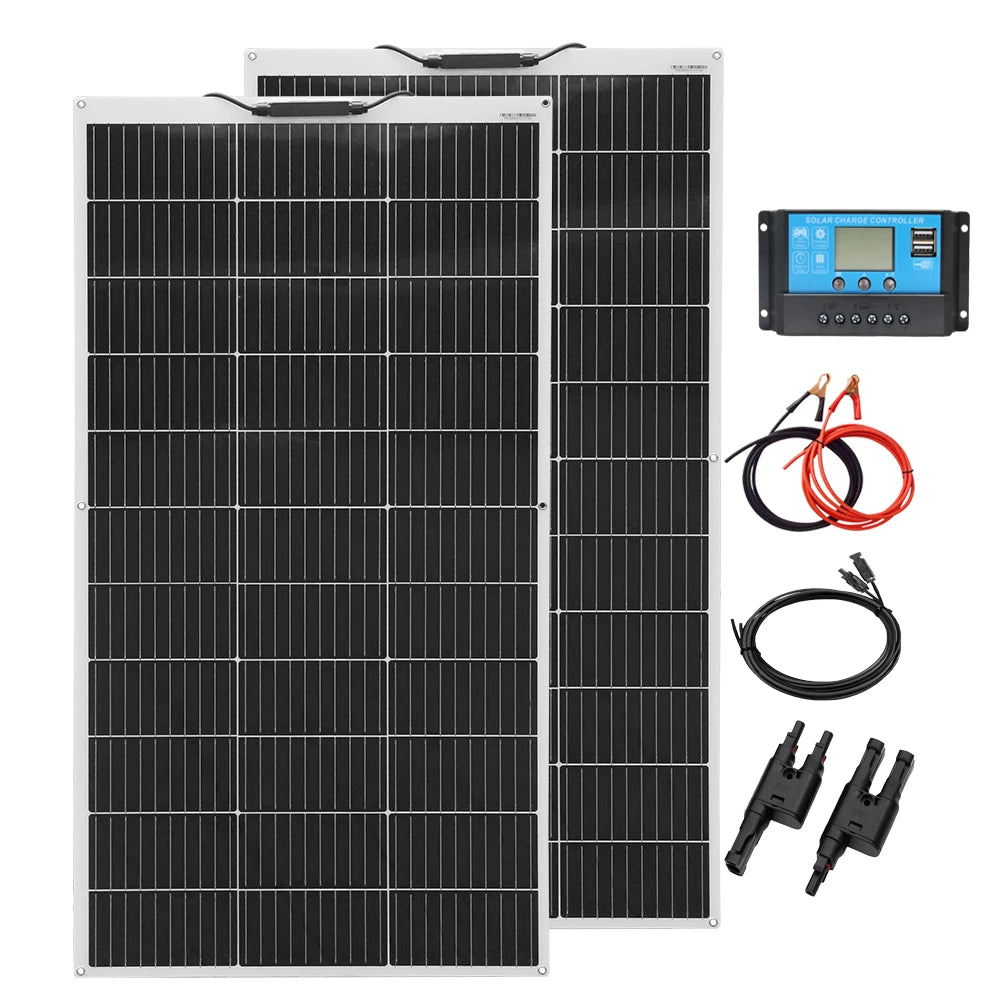

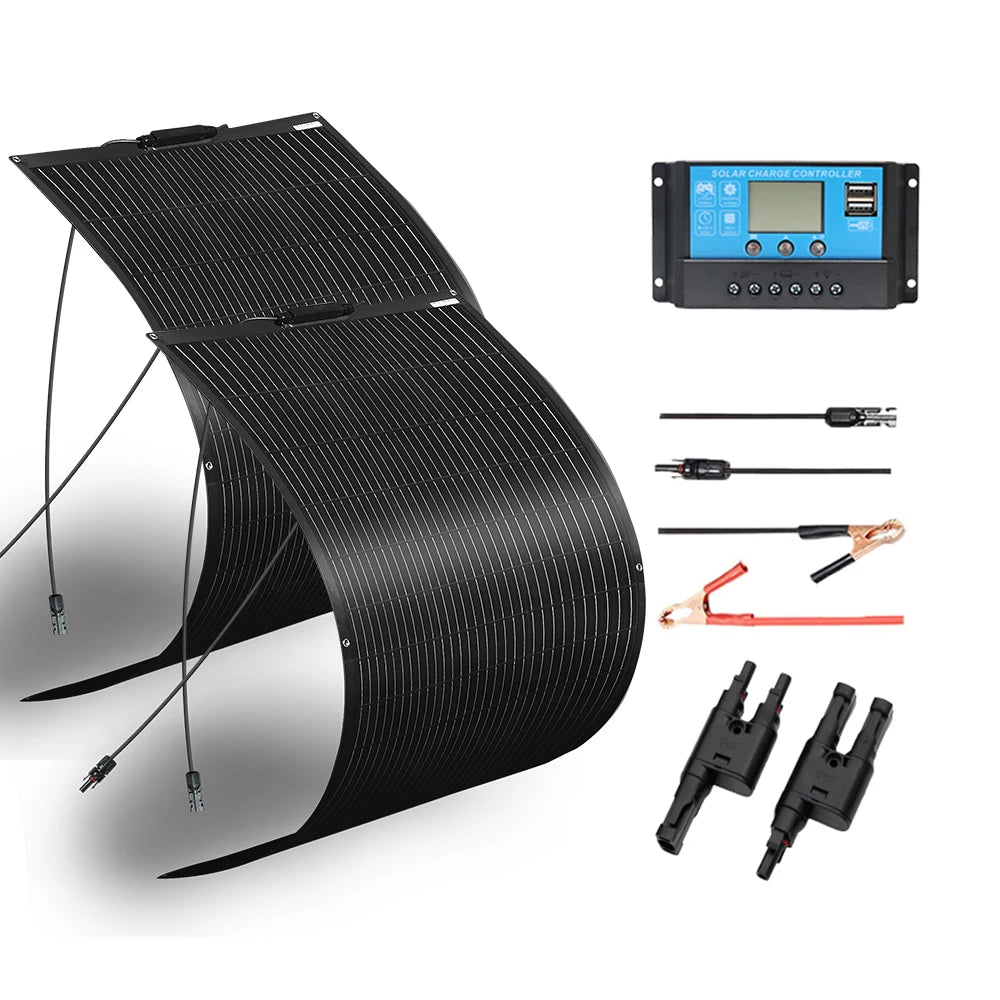

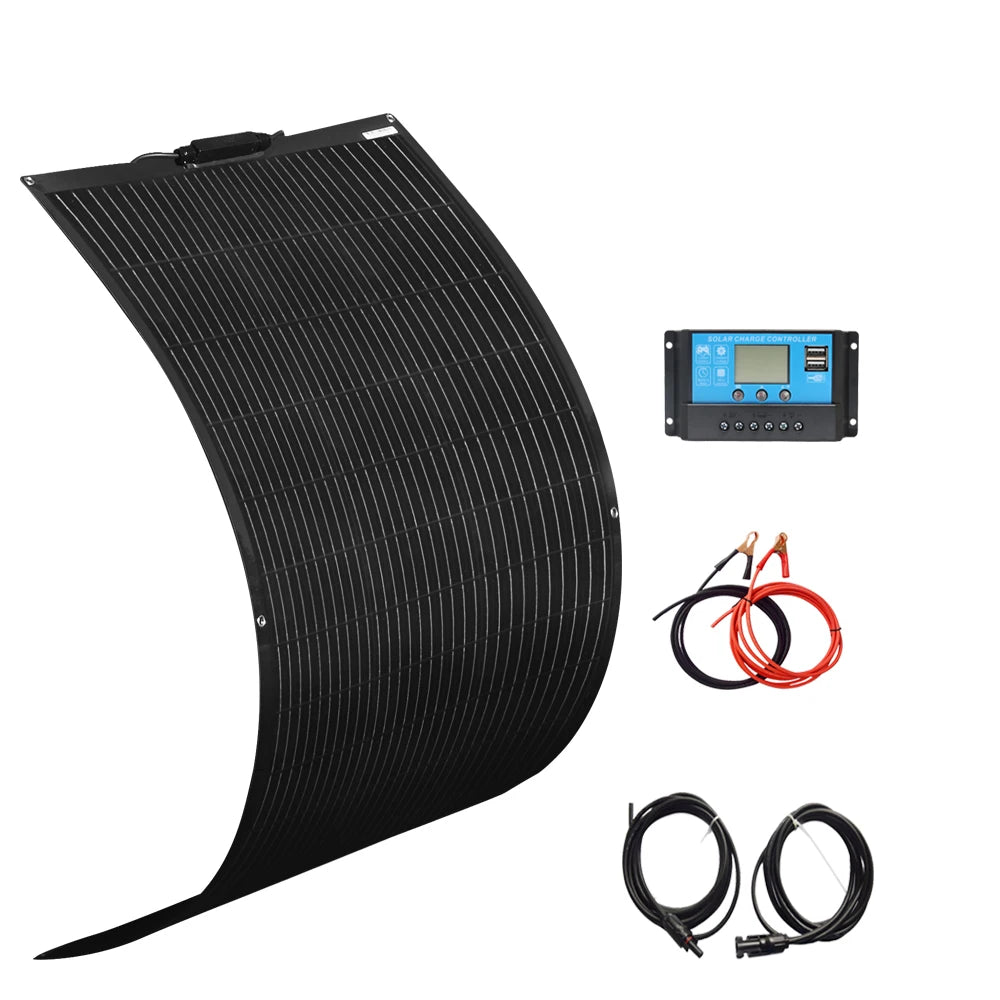

10A /20A Charger Controller

Batt voltage:12V/24V auto
Charge current:10A /20A
Discharge current:10A /20A
USB output:5V/2A
Self-consume:<10mA
Operating temperature:-35~+60 ℃
Suitable for :lead acid batteries AND lithium ions
Build-in short-circuit protection,open-circuit protection,reverse

Alligator clips

Model: 1*2.5mm
Number of cores: single core multiple strands
The maximum external diameter of the wire: 5.3 ± 0.2 (mm)
Nominal cross section: 2.5 (mm)
Uses: Photovoltaic power generation
Core material: tinned copper wire
Product Certification: TUV
Voltage rating: 0.6/1KV
Rated voltage: 1000V
Length:1.5M

PV Cable

Model: 1*2.5mm
Number of cores: single core multiple strands
The maximum external diameter of the wire: 5.3 ± 0.2 (mm)
Nominal cross section: 2.5 (mm)
Uses: Photovoltaic power generation
Core material: tinned copper wire
Product Certification: TUV
Voltage rating: 0.6/1KV
Rated voltage: 1000V
Length:1.5M

Features:

a. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.
b. Using the latest component packaging technology, thinner, lighter, softer and longer life.
c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.
e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.
f. Use photovoltaic special cable and pv connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play.
g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.
