1200W solar panel 12V solar panel charger dual USB with 100A controller flexible solar panel outdoor camping mobile phone car yacht

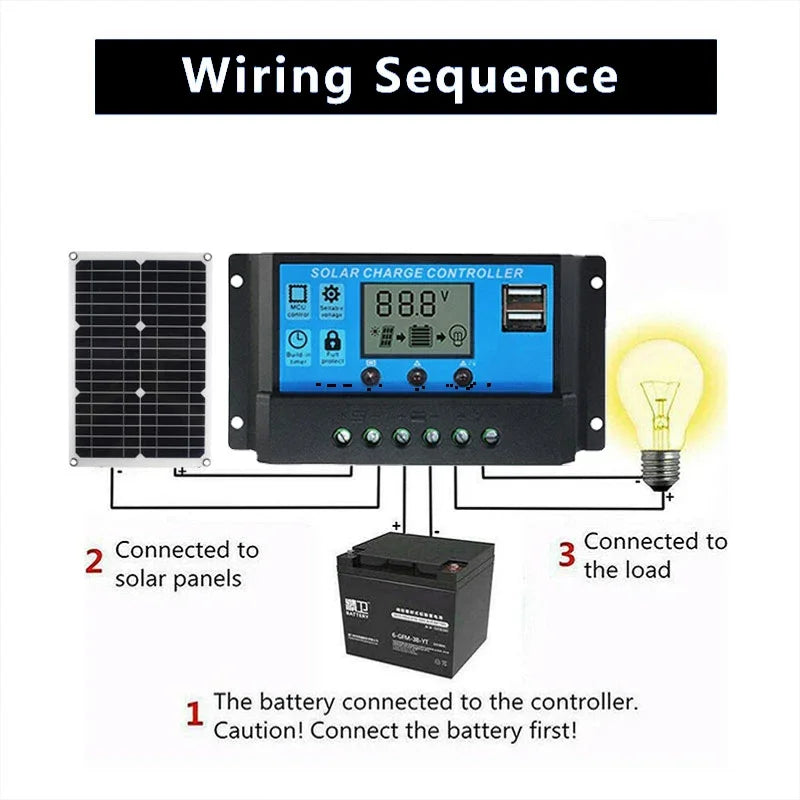

Controller connection steps:(the Last picture)

1. Connect the positive and negative poles of the battery , the controller will detect the battery voltage automatically ;

2. Connect the solar panel to the controller;

3. Connect the load as show , don't connect it reversely;

Note: Please connect in strict accordance with the picture show,

otherwise it may cause the controller short circuit;

the disassembly sequence is opposite to the connection sequence.

Features:

* Used to charge MP3 phones, pads or other controlled devices.

* Dual female USB ports, you can easily charge the device through the * USB charging cable.

* You can put the panel in the sun and use it to directly charge the device.

* Suitable for outdoor biking, mountaineering, hiking, camping, traveling, etc.

Specification:

1200W Solar Panel:

Material: Monocrystalline Silicone

Size: 420*280*2.5mm

Average power: 30W

Voltage: 18V 12V 5V

Rate conversion rate: 19.1%

Number of USB ports: 2

Solar Controller:

Material: PVC

Voltage: 18V automatic identification

Rated charging current:  100A 60A  40A

The highest photovoltaic voltage: 18V system＜25V/24V system＜50V

USB output: 2 USB outputs, maximum 5V/2A

Standby current: <10mA

Working temperature: -35℃~+60℃

Size: 180 * 90 * 45mm
