6000W 6KW 10000W 10KW ON/Off Grid Solar Inverter 220V Pure Sine Wave MPPT Solar Charger Hybrid Solar Inverter
6000W 6KW 10000W 10KW ON/Off Grid Solar Inverter 220V Pure Sine Wave MPPT Solar Charger Hybrid Solar Inverter
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Brand Name: ANERN
Certification: CE,RoHS
Hign-concerned Chemical: None
Is Smart Device: Yes
Model Number: AN-PVI
Origin: Mainland China
Output Current: 40A/50A
Output Frequency: 50HZ/60HZ
Output Type: DUAL
Size: 360mm*276mm*106mm
Weight: 6.5KG
is_customized: Yes
|
MODEL |
AN-PVI-6000W |
AN-PVI-10000W |
|
RATED POWER |
6KVA/6KW |
10KVA/10KW |
|
PHASE |
1-phase in/1-phase out |
|
MAXIMUM PV INPUT POWER |
4500W*2(9000W) |
4500W*3(13500W) |
|
GRID-TIEOPERATION |
|
PVINPUT(DC) |
|
Maximum DC Voltage |
500Vdc |
|
Start-up Voltage/Initial Feeding Voltage |
90Vdc/120Vdc |
|
MPPT Voltage Range |
60-450Vdc |
|
Number of MPPT Trackers/Maximum Input Current |
2/18A |
3/18A |
|
GRID OUTPUT(AC) |
|
Nominal Output Voltage |
220/230/240VAC |
|
Output Voltage Range |
184-264.5VAC or 195.5-253VAC or 184-264.4VAC(Selectable) |
|
Nominal Output Current |
26A |
43A |
|
Power Factor |
>0.99 |
|
EFFICIENCY |
|
Maximum Conversion Efficiency(DC/AC) |
97% |
|
OFF-GRIDOPERATION |
|
AC INPUT |
|
AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
|
Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
Frequency Range |
50Hz/60Hz(Autosensing) |
|
Maximum AC Input Current |
40A |
50A |
|
GENERAL |
|
PHYSICAL |
|

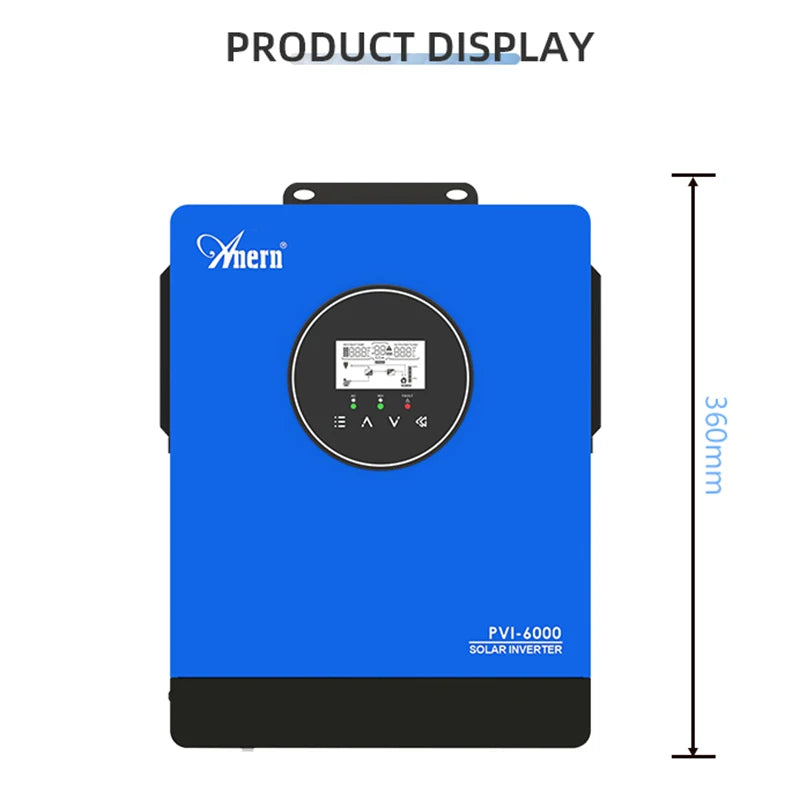

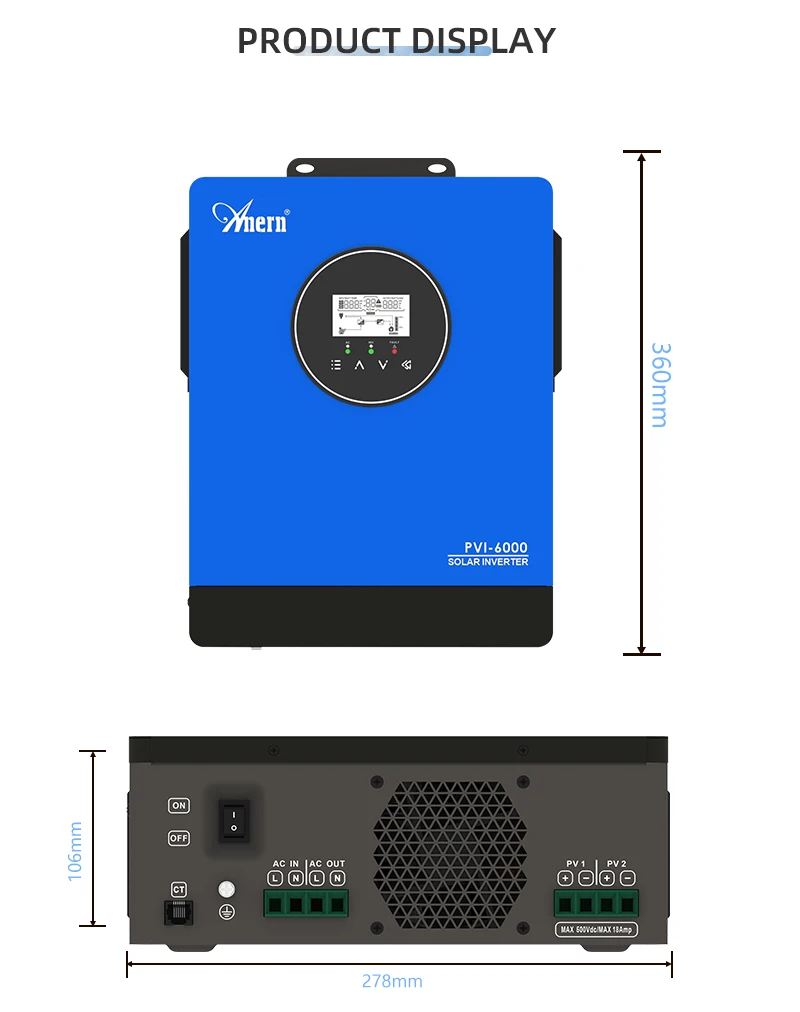

Dimension,DxWxH(mm) |
360x278x106 |
360x310x107 |
|
Net Weight(kgs) |
4.9 |
6.5 |
|
ENVIRONMENT |
|
Humidity |
5% to 95% Relative Humidity(Non～condensing) |
|
IP degree |
IP21 |
|
Operating Temperature |
-10℃～50℃ |
|
Storage Temperature |
-15℃～60℃ |
Features:
Pure sine wave inverter
Configurable input voltage range for home appliances
and personal computers via LCD setting
Combind to the grid based on applications via LCD setting
Compatible to mains voltage
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Cold start function

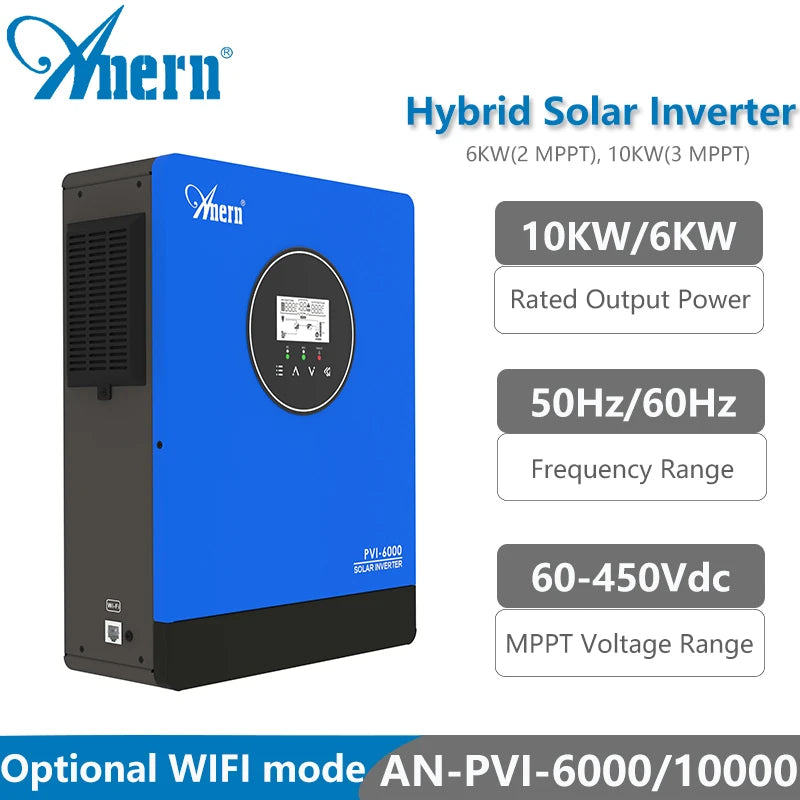

Dual mppt at 4KW and 6KW,three mppt at 10KW and 15KW
Can Running 1.5P motor with 4KW,3P motor with 6KW,
1.5P+3P motor with 10KW,3P+3P motor with 15KW
Full load work with solar only
The AN-PVI series inverters can also be directly connected to the grid, based on the premise that the country of application has no requirements for grid connection certification.
