SPECIFICATIONS

AC Output: 220-240VAC

Brand Name: ECGSOLAX

Certification: CE

Feature 1: Built-in MTTP 160A/180A Solar Charge Controller

Feature 2: off-grid inverter

Feature 3: Dual MPPT input

Feature 4: Dual AC Output

Hign-concerned Chemical: None

Is Smart Device: Yes

Maximum AC Charging Current: 140A/160A

Maximum DC Voltage: 500VDC

Maximum Solar Charging Current: 160A/180A

Maxmium Efficiency: 98%

Model Number: MAX-8.2K 10.2K

Nominal Output Voltage: 48VDC

Origin: Mainland China

Output Frequency: 50/60Hz

Output Power: 1 - 200KW

Output Type: DUAL

Rated Power: 8200W 10200W

Wave Form: Pure sine wave inverter

Weight: 16kg

is_customized: Yes

ECGSOLAX 10.2KW Hybrid Solar Inverter 48V 230VAC With Dual MPPT 180A Charging Controller PV Max 500VDC Pure Sine Wave Inverter

Introduction:

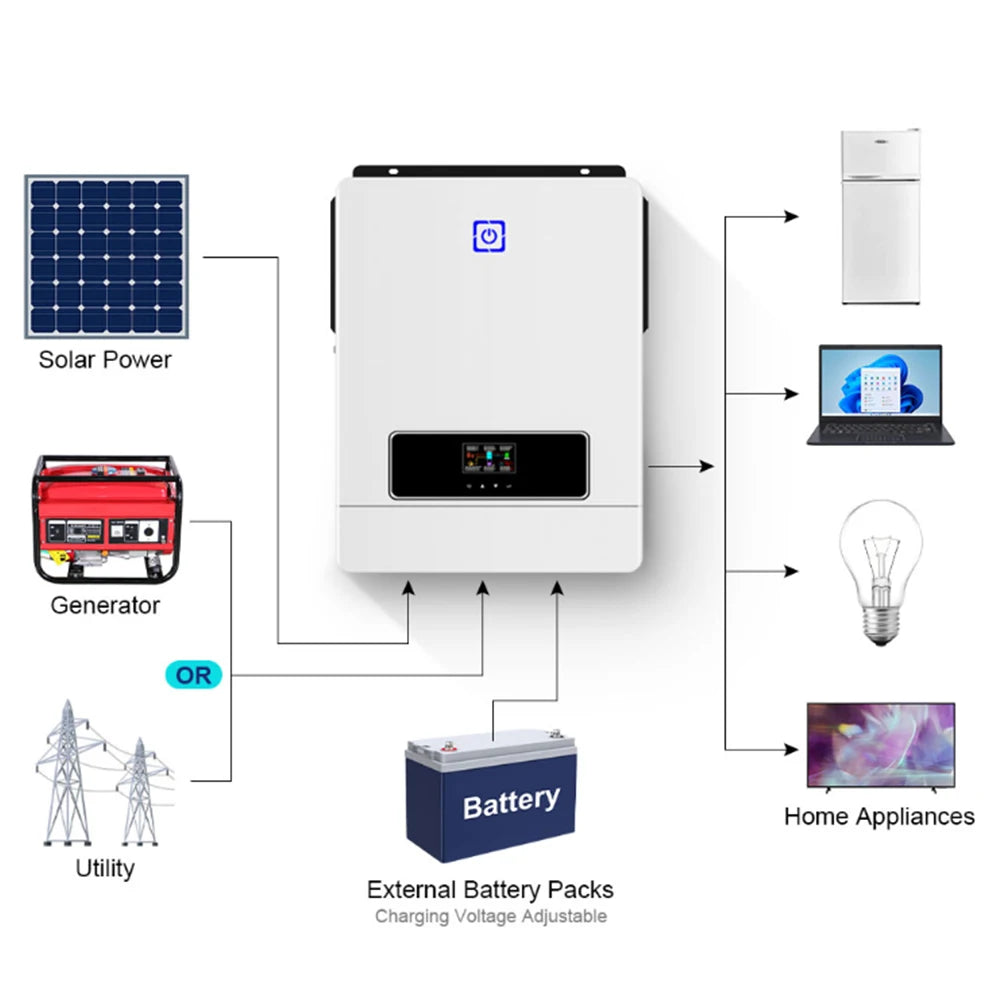

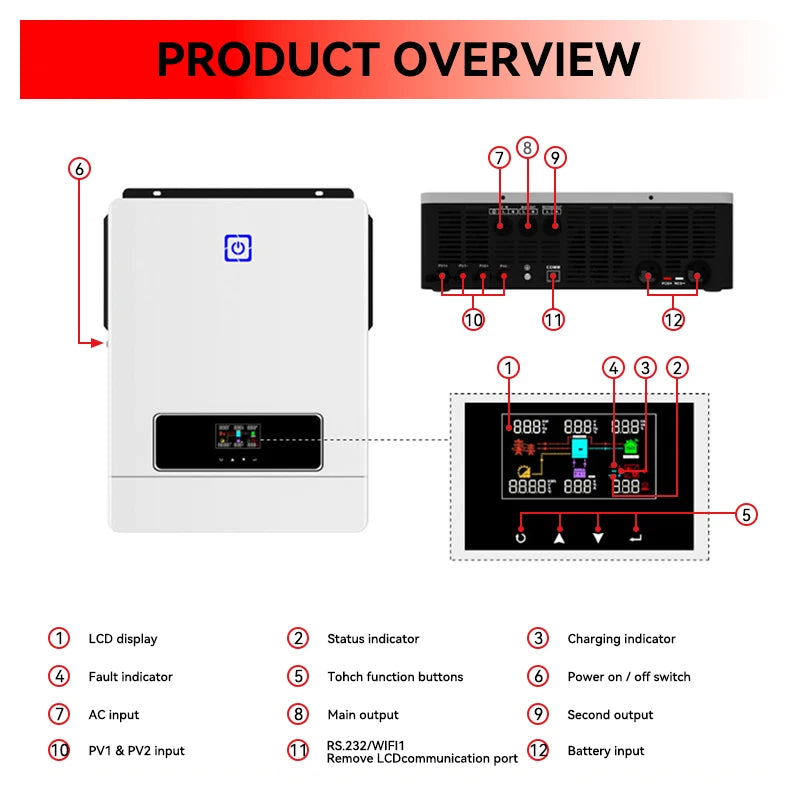

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications

Featrues:

• Pure sine wave inverter

• Configurable input voltage range for home appliances and personal computers via LCD setting

• Configurable battery charging current based on applications via LCD setting

• Configurable AC/Solar Charger priority via LCD setting

• Compatible to mains voltage or generator power

• Auto restart while AC is recovering

• Overload/ Over temperature/ short circuit protection

• Smart battery charger design for optimized battery performance

• Cold start function

• Dual MPPT input & Dual output

• Inverter running without battery

• Built-in Lithium battery automatic activation

Specification:
